F Range
In applications with sensitive hygienic requirements, cleanliness is the most critical factor. The ROTOMAC F Range fulfils even the strictest hygiene requirements in the food, pharmaceutical, cosmetics and chemical industries — conveying both high and low viscosity substances with minimal shear effect.
StandardsEHEDG · FDA · 3-A
CleaningResidue-Free CIP / SIP
ConveyingLow Shear · Pulsation-Free
ServiceNo Special Tools Required
Clean EHEDG Design Principles
Built For Hygienic Process Lines
ROTOMAC food and hygienic pumps fulfil even the strictest hygiene requirements across the food, pharmaceutical, cosmetics and chemical industries. They convey both high and low viscosity substances with minimal shear effect, ensuring product quality at all instances and remaining in line with international sanitary standards.
The parts of our food and hygienic pumps are designed keeping in mind the guidelines set out by EHEDG principles. All materials in contact with the pumping product naturally fulfil the international requirements of the FDA and EU 1935/2004.
Three models, one platform. All F Range pumps share the same hygienic wet end and cleaning credentials. What separates them is the joint design and the inlet — which is what determines how heavy, abrasive or non-flowable a product they can handle.
Three Pumps In The F Range
Each model is built for a different kind of product. Pick by joint type and inlet design, then confirm capacity and pressure.

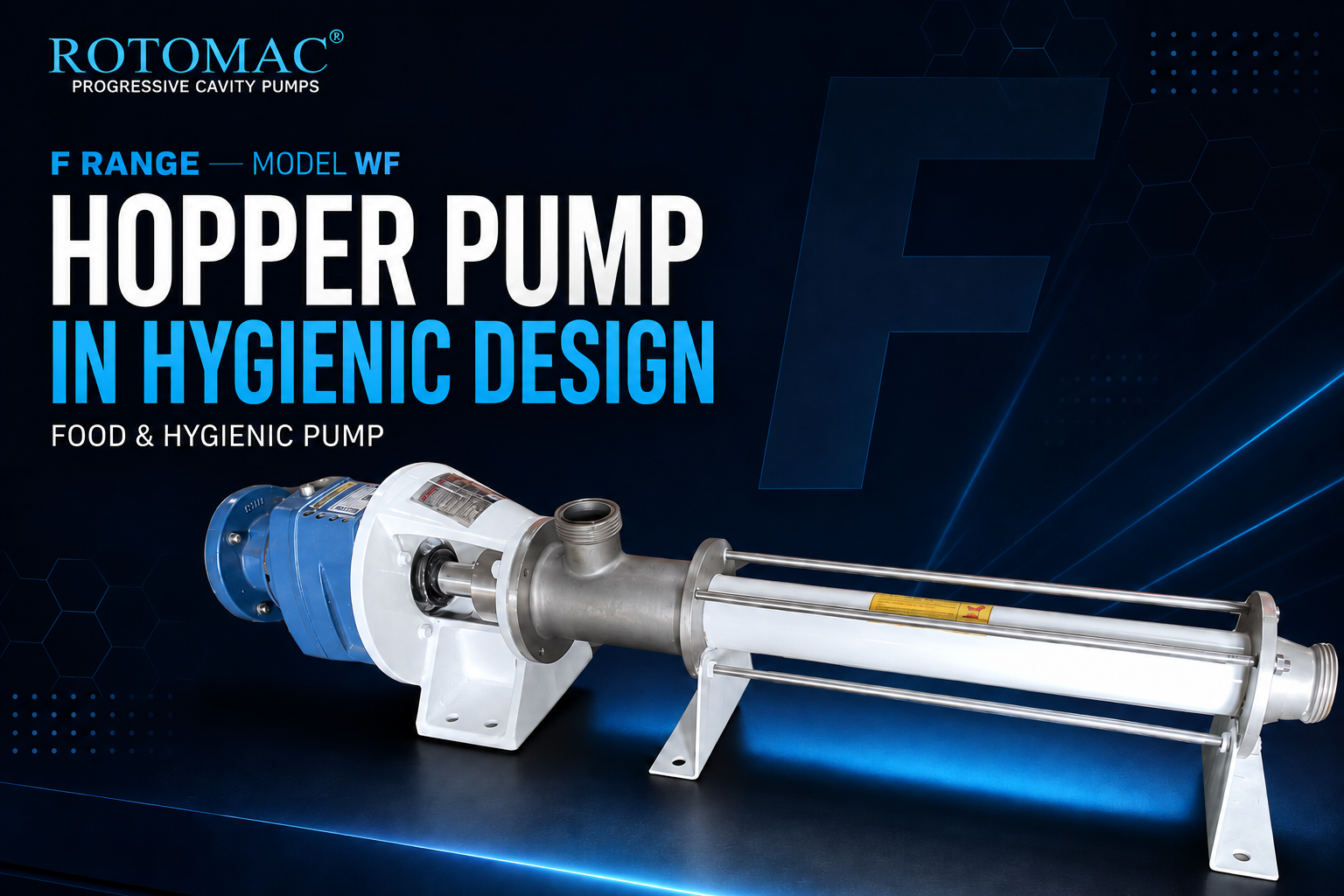

WF Hopper Pumps
For very highly viscous and minimally flowable products, with and without solids. A rectangular hopper with compression zone and feed screw conveyor feeds product that will not flow on its own. Choice of open pin or encapsulated cardan joint.
- Capacity
- 0.1–100 m³/h
- Pressure
- ≤ 24 bar

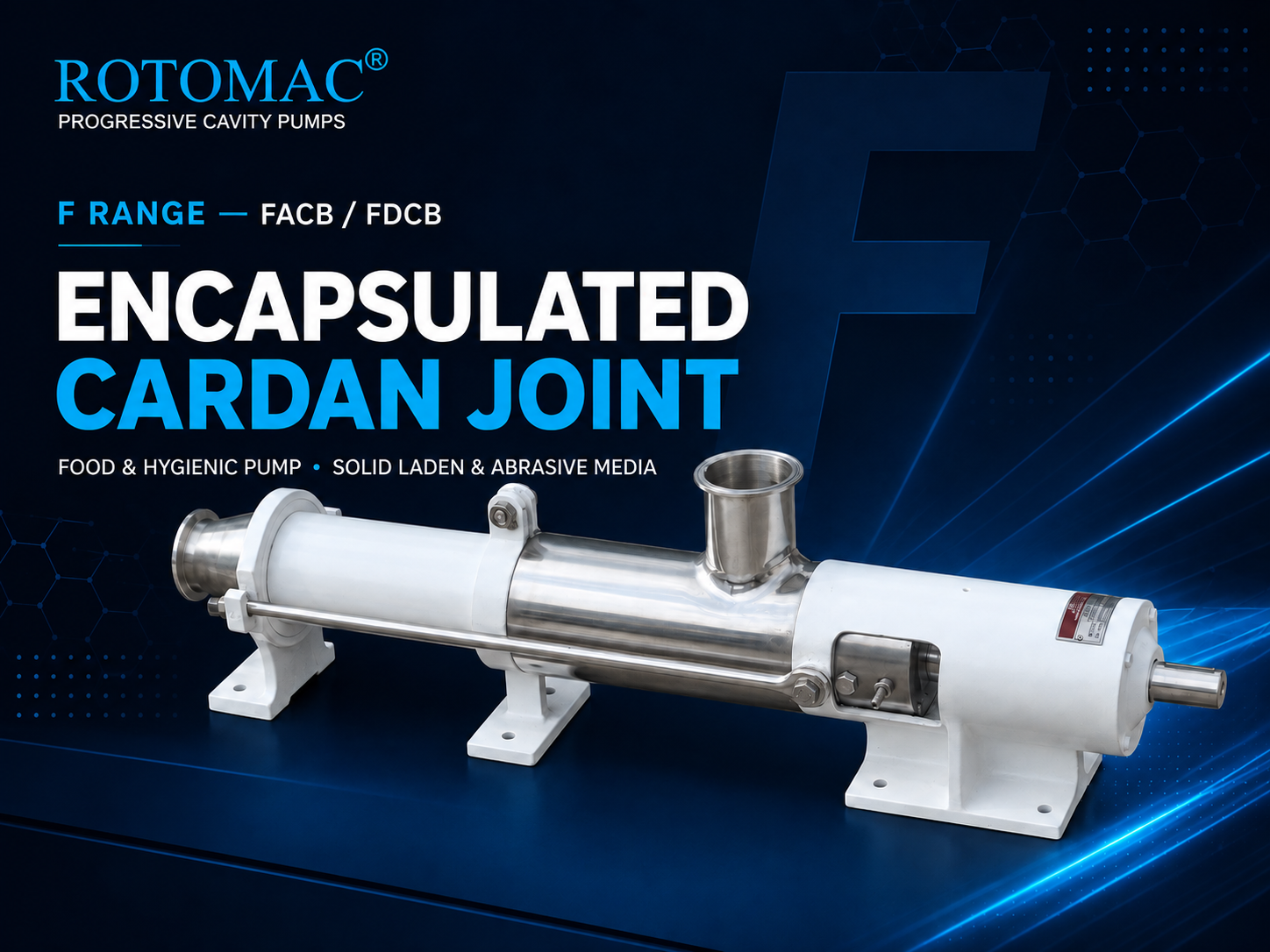

FACB-FDCB Pumps
For abrasive and high solid-laden media. The ROTOMAC encapsulated cardan joint carries higher load by design and uses food grade greases for lubrication — long joint service life without contamination risk in hygiene-critical applications.
- Capacity
- 0.1–100 m³/h
- Pressure
- ≤ 24 bar

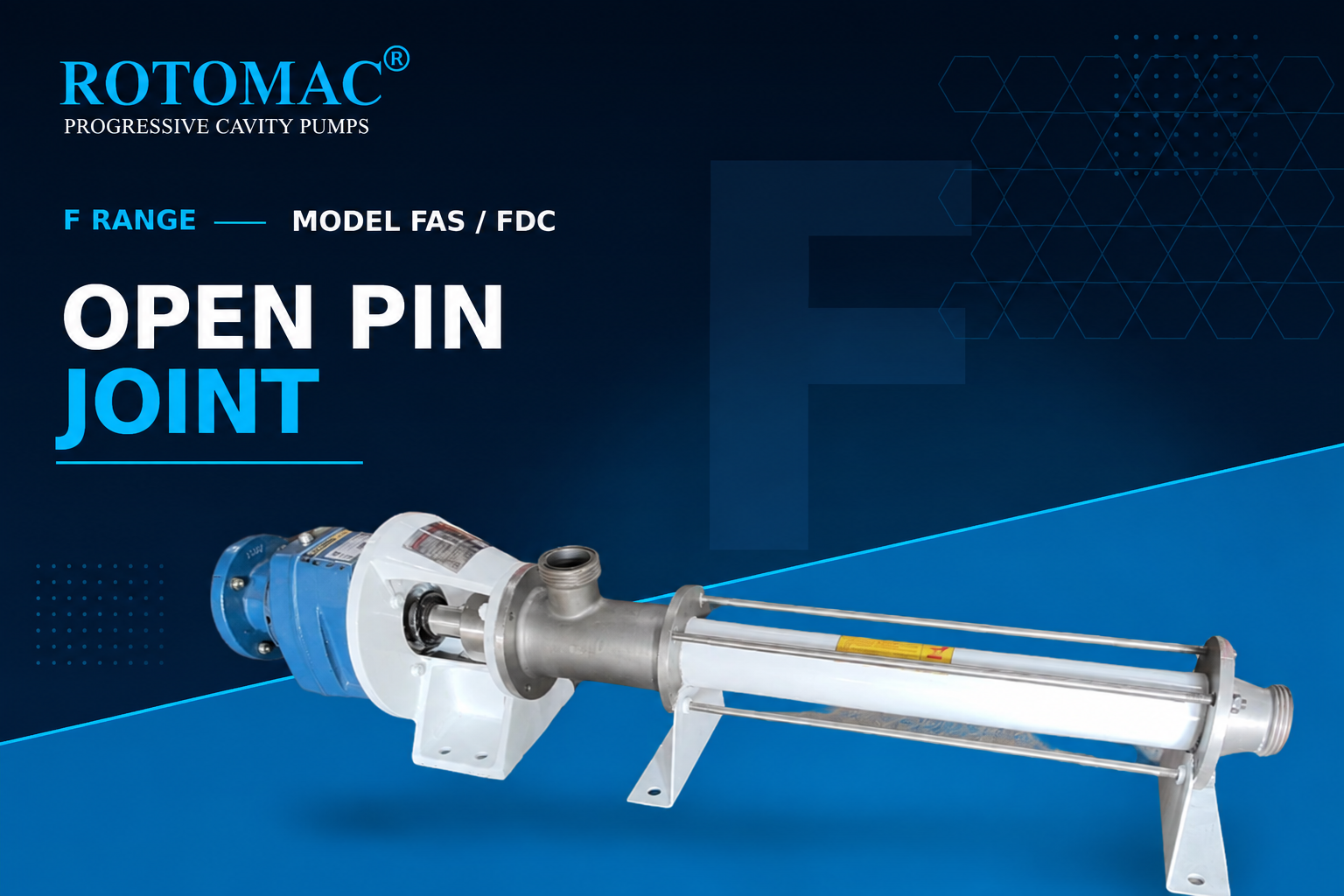

FAS-FDCS Pumps
Open hygiene joints with residue-free cleaning using CIP. The special design of the corrosion and wear-resistant joints means maintenance can be performed quickly and without any special tools — ideal for frequent changeovers.
- Capacity
- 0.1–60 m³/h
- Pressure
- ≤ 24 bar
Which F Range Pump Do You Need?
A quick side-by-side of the three models. Scroll horizontally on smaller screens.
| Compare | WF Hopper | FACB-FDCB | FAS-FDCS |
|---|---|---|---|
| Joint Type | Open pin, or encapsulated cardan as an option | Encapsulated cardan joint, food grade grease lubricated | Open pin joint in corrosion and wear-resistant materials |
| Inlet Design | Rectangular open hopper with feed screw and conical compression zone | Standard hygienic suction housing | Standard hygienic suction housing |
| Best For | Very highly viscous and minimally flowable products that cannot self-feed | Heavy, abrasive and high solid-laden media | Frequent changeovers and short cleaning windows |
| Capacity | 0.1–100 m³/h | 0.1–100 m³/h | 0.1–60 m³/h |
| Pressure | ≤ 24 bar | ≤ 24 bar | ≤ 24 bar |
| Drive Options | FACB bareshaft / FDCB close coupled | FACB bareshaft / FDCB close coupled | FAS bareshaft / FDC close coupled |
| Cleaning | CIP & SIP | CIP & SIP | CIP & SIP |
| Product Page | View WF Hopper → | View FACB-FDCB → | View FAS-FDCS → |
Features & Benefits
What every pump in the F Range shares, whichever model you specify.
Meets International Hygiene and Material Standards
EHEDG compliant with international standards (ex. FDA and 3-A hygiene and material standards) through optimized construction, components and hygienic mechanical seals.
Gentle Conveying
Low shear and virtually pulsation-free pumping of low to highly viscous products with constant conveying capacities and high pressure stability.
Residue-Free Cleaning
Designed to suit cleaning processes such as Clean in Place (CIP) & Sterilization in Place (SIP).
Easy Maintenance
Compact design allows low space requirements — simple & reliable construction facilitates ease of maintenance since no special tools are required.
Versatile Applications
Fulfills even the strictest hygiene requirements, and is therefore suitable for numerous applications in the food, pharmaceutical, cosmetics and chemical industries.
Food-Contact Compliant Materials
All materials in contact with the pumping product naturally fulfil the international requirements of the FDA and EU 1935/2004.
Typical Applications
Across food, beverage, pharmaceutical, cosmetics and chemical process lines with strict sanitary compliance.
Dairy & Cheese
Milk, cream, yoghurt, curd, quark and processed cheese.
Bakery & Confectionery
Dough, batters, fillings, fondant, caramel and glazes.
Meat & Ready Meals
Minced product, marinades, brines, pastes and sauces.
Fruit & Vegetable
Juices, purees, pulps and preparations with whole pieces.
Pharmaceutical
Sterile and semi-solid formulations requiring SIP validation.
Cosmetics
Lotions, creams, gels and emulsions.
Pet Food
Wet food mixes, gravies and fibre-bearing blends.
Beverage & Brewing
Yeast, sediment, spent grain, concentrates and syrups.
Not Sure Which F Range Pump?
Share your product viscosity, solids content, flow rate, discharge pressure and cleaning regime — our engineers will recommend the right model and configuration for your line.
