Pump For Precise Metering
MP Range progressive cavity pumps are used in virtually all industries for metering and dosing precise quantities. They are particularly good for minimal pulsation conveyance of thin to viscous fluids, as well as corrosive media containing solids.
Accuracy±2% Dosing Deviation
ControlValveless Flow Control
MaterialsHastelloy C / Titanium Options
MediaThin To Viscous & Corrosive
Dosing Deviation Only ±2%

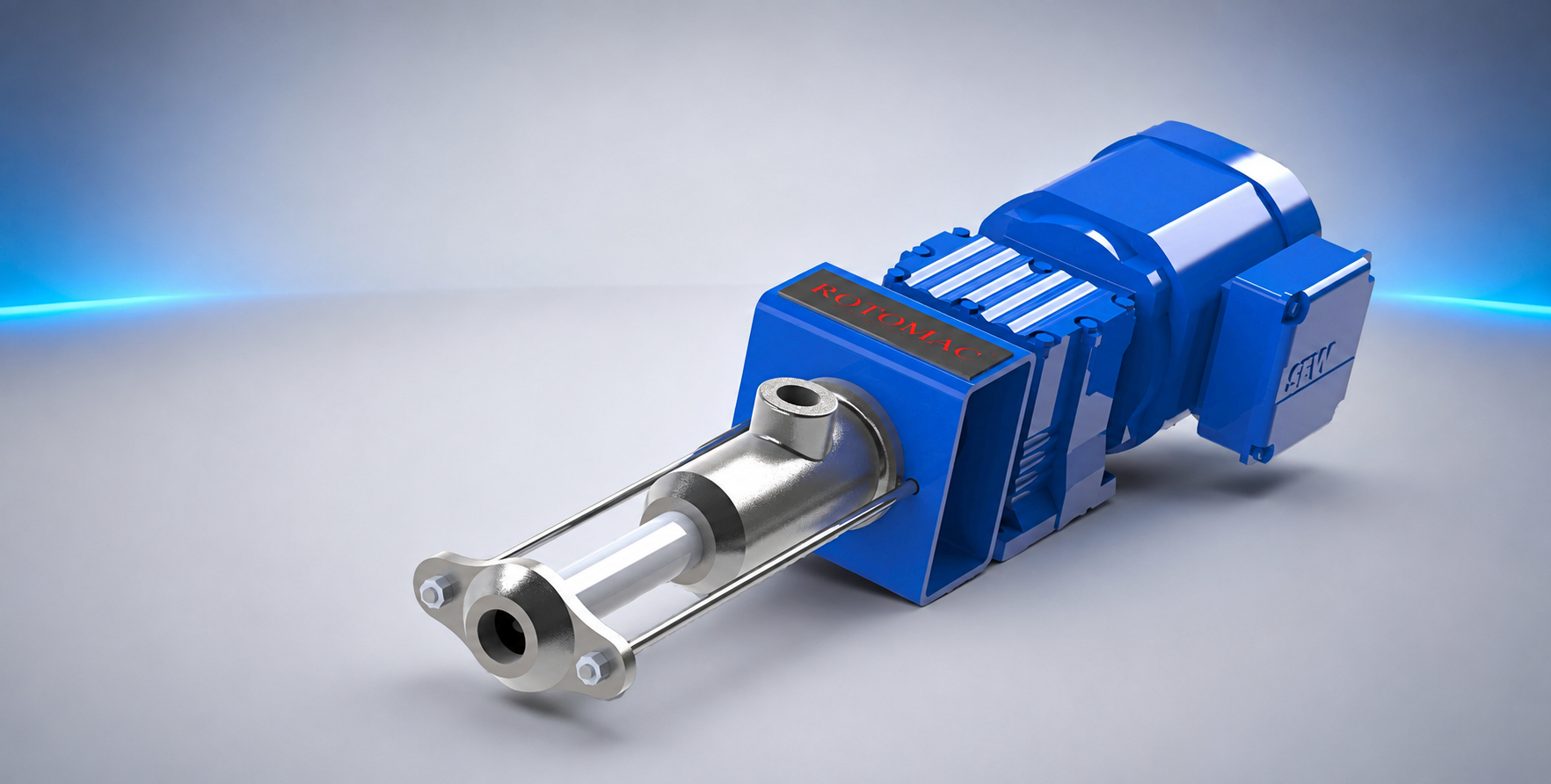

ROTOMAC™ MP Dosing Pump
The MP is the general-purpose metering pump of the ROTOMAC Dosing Range — used across virtually all industries wherever a precise quantity has to be delivered, repeatably, without pulsation. It handles thin fluids and viscous ones equally well, and stays accurate on corrosive media that carries solids.
Because the progressive cavity principle displaces a fixed volume per revolution, output tracks pump speed linearly. There are no check valves to stick or clog, and dosing accuracy holds to a deviation of only ±2%.
MP or MW? Both cover 1–550 L/h at ≤ 24 bar. The MP uses a conventional suction housing and suits anything that will flow to the inlet on its own. Choose the MW instead when the product is so viscous it needs an open hopper and feed screw to reach the pumping element.
Specified For Corrosive Duty
Components are available in a range of materials, so the pump can be matched to aggressive chemistry rather than compromised around it.
Stainless Steel
The standard build. Discharge port and suction housing in stainless with threaded BSP or NPT connections.
Hastelloy C
High corrosion resistance for aggressive acids and oxidising chemistry where stainless would not survive.
Titanium
For the most demanding corrosive service, including chloride-bearing and marine-adjacent process media.
Details & Configuration
Everything you need to know about the MP Dosing Pump — from core benefits to full technical configuration options.
Economical
Reduced costs due to inexpensive rotating unit.
No Vapor Locking
Cavity design allows for conveyance of liquids, solids, and gases.
Ease of Operation
Valveless flow control for ease of operation.
Performance Efficiency
Low slip (internal back flow) provides performance efficiency and less wear on components.
Easy Maintenance
Simple and predictive maintenance due to minimal components.
Durable
High corrosion resistance due to the variety of components made of Hastelloy C or Titanium.
Exact Dosing
High dosing accuracy — deviation only +/- 2%.
- Discharge Port
- Only available in stainless steel, threaded connections to BSP or NPT standards.
- Rotor
- Wear resistant and corrosion-resistant materials.
- Stator
- The seal on both ends is molded as an integral part of the elastomeric stator.
- Shaft Sealing
- Only available with Mechanical seal configurations.
- Yoke Shaft
- Connects the drive shaft to the joint. Upon request, it is available with wear resistant coating.
- Body
- For connection of pump and drive and to secure the assembly to the baseplate or directly to the foundation.
- Suction Housing
- Available in stainless, with drain plug and connections for pressure / vacuum gauge. Only threaded connections are available, and can be rotated in 90° increments.
- Close Coupled Drive Connection
- For easy dismantling of the pump and drive, enabling quick replacement of the rotating parts and shaft seals. The yoke shaft pin secures the shaft connection to the drive and the water thrower protects the drive from contamination / gland leakage.
- Drive
- Geared motors, variable speed drives or frequency controlled motors of all major manufacturers, directly flanged to the pump without additional couplings or guards. Covers made of stainless steel are available.
Technical Specifications
Typical Applications
Used in virtually all industries where a precise quantity has to be delivered repeatably — including corrosive media containing solids.
Chemical Processing
Acids, alkalis, polymers and reactive additives.
Water Treatment
Coagulants, flocculants, chlorine and pH correction.
Pharmaceutical
Active ingredient dosing and sterile formulation transfer.
Food & Beverage
Flavourings, colourings, enzymes and concentrates.
Paints, Inks & Coatings
Tinting, pigment dosing and resin metering.
Pulp & Paper
Sizing agents, retention aids and dye dosing.
Mining & Minerals
Reagent and flotation chemical dosing into slurries.
Cosmetics
Fragrance, pigment and active ingredient metering.
Need an MP Dosing Pump?
Share your media chemistry, required dosing rate, discharge pressure and control method — our engineers will confirm the right MP size, wetted materials and drive configuration.
